Thursday, January 14, 2016

week 1

Monday:

1.     What is the class format?

Monday: Quiz, Lab intro, Lab, and Wrap-up.
Wednesday: Lab and Wrap-up.
Friday: Blog discussions and Post-quiz.

2.     What are the important safety rules?

•Remember where the fire extinguisher and first aid kits, and remember telephone and emergency numbers.
•Don’t work with the defective equipment.
•Clean/tidy up!
•Power off while not working.
•Grounding.
•No wet hands.

3.     Does current kill?

Yes!

4.     How do you read color codes? (Video)
video

5.     What is the tolerance? Give an example from your experiment

Tolerance is the amount error that there can be from the designed resistance. The tolerance on our resistors was five percent, so this means the resistance in them could be five percent higher or lower of the intended amount. For example our 1500 ohm has a tolerance of five percent, and our measured amount was 1490 ohm. So this is within .67 percent which is within the allowed five percent tolerance.

6.     Prove all your resistors are within the tolerance range


Resistor value (Ohm)
Actual value (Ohm)
Error percentage (%)
1.5k
1.49k
0.67
120
119
0.83
360
355.8
1.167
150k
147.7
1.53
15k
14.75
1.67
1.5k
1.48k
1.3
2.2M
2.2M
0
47
46
2.1
2700
2708
0.3
820
816
0.49

The error percentages of all resistors are smaller than 5%, so all the resistors are within the tolerance range.

Wednesday:

1    1.  What is the difference between measuring the voltage and current using a DMM? Why?

     When you measure voltage with the DMM you measure it in parallel. When you measure the current you need to break the loop and take the measurement with the DMM in series with the circuit. You measure the voltage in parallel because you are measuring the difference across two points. In order to measure the current, the DMM must be in series with circuit so the current will flow trough the DMM.

2    2.     How many different voltage values can you get from the power supply? Can each one of them be changed to any value?

      For first channel the voltage is fixed at 5 volts, the other two can be adjusted anywhere between 0 and 25 volts.

3    3.     Practice circuit results (video) & (photo)


       Measure voltage:


video

Measure current:


                                          video


4    4.     How do you experimentally prove Ohm’s Law? Provide measurement results. Compare calculated and measured voltage, current, and resistance values. (Experimental setup photo)

      Ohm's Law: voltage/current = resistor.

For the 147.7kΩ (measured value):
Voltage (V)
Current (A)
Resistor (Ω)
5.02
0.0337
148.96
7.57
0.0511
148.14
10.09
0.0682
147.95
12.68
0.0857
147.96
15.01
0.1016
147.77
17.43
0.1180
147.73

For the 14.75kΩ (measured value):
Voltage (V)
Current (A)
Resistor (Ω)
5.01
0.3395
14.75
7.57
0.5134
14.74
10.1
0.6842
14.75
12.7
0.8600
14.74
15.0
1.0190
14.73
17.4
1.1835
14.73

The experimental set up will be the same us measuring voltage and current.

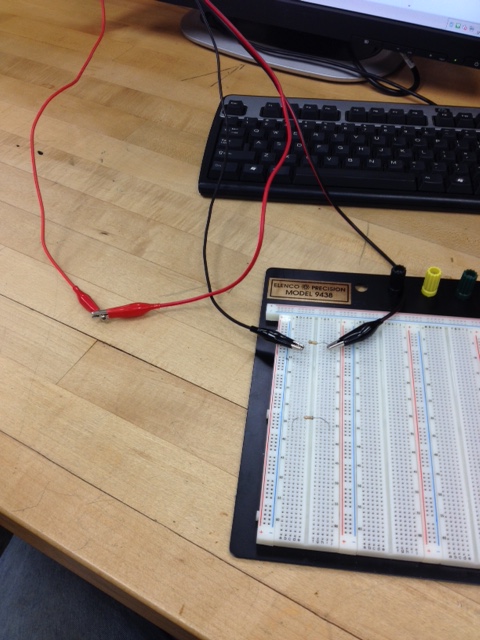

      Measuring current:
Measuring voltage:



5    5.     Rube Goldberg circuit (video).
video

Friday:

1.  Draw the circuit diagram for the Rube Goldberg set-up.


2.  How can you implement this setup into a Rube Goldberg machine? Drawing required.

After getting the power from the Rube Goldberg set-up, we can use it to power the dryer, and then use the wind from the dryer to blow the ball to the pinball track and use the basket to catch the ball finally.
